PARALLEL PRINTER
Parallel printer interface Click the diagram for more detail, or to save a copy: 1. in Internet Explorer right click on the picture and select "Save Target as..." 2. in Netscape double-click the picture to open the file, then under "File" select the "Save As" option.

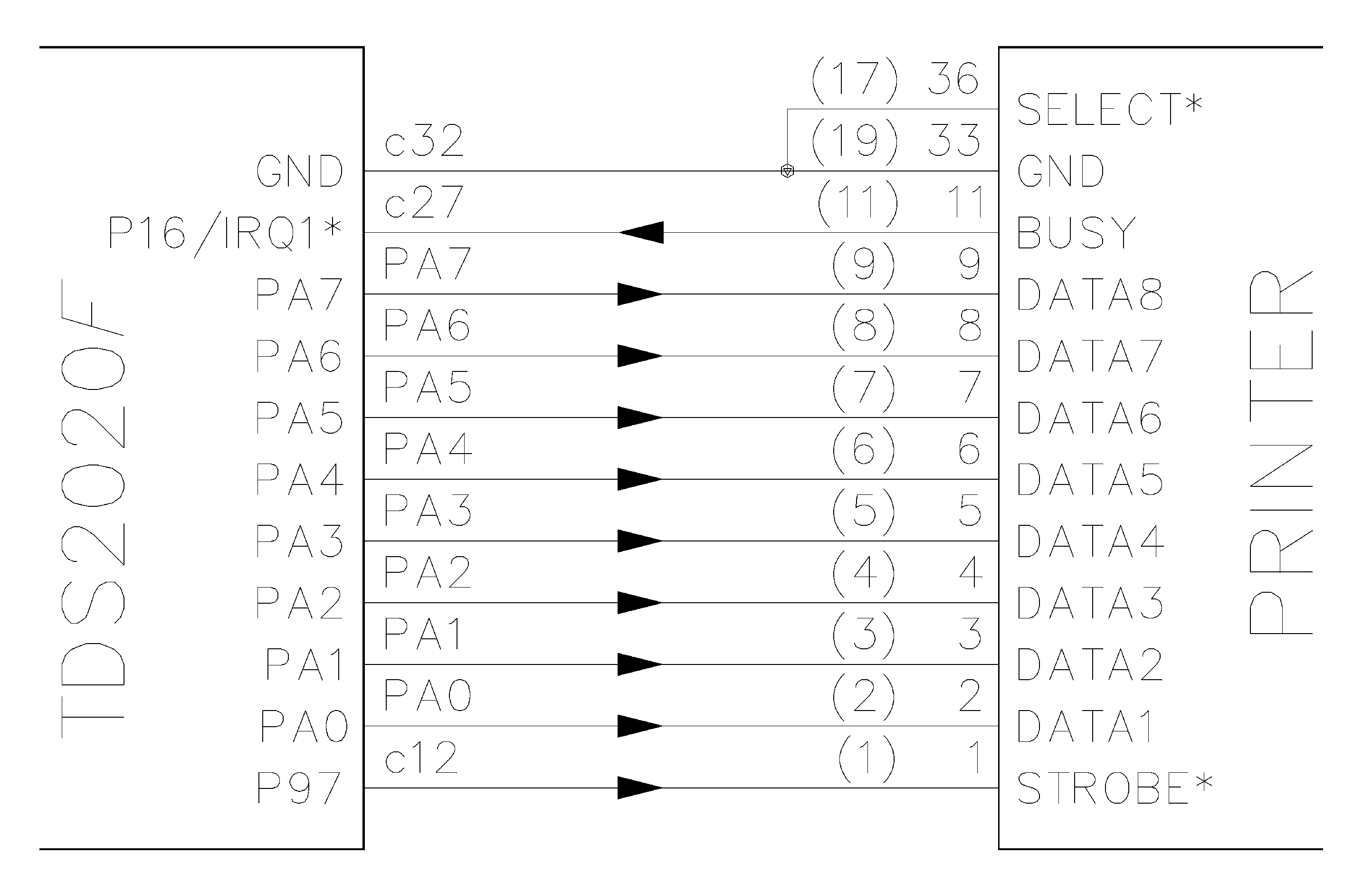

The diagram shows how a printer with parallel PC
(Centronics) interface can be connected to the TDS2020F computer, most PC printers are suitable. The pins in parentheses
are those at the end of a PC-to-printer cable. Support code is in
the file #PRINTER.TDS supplied with the UPDATE
SERVICE, page 38.
|
 |
